How to install Lotus Domino 8.5 on Ubuntu - Part I

This tutorial explains how to install a Lotus Domino Server on Ubuntu Server. Part I: Ubuntu Server installation.

This is the first part ot the tutorial, here I will show you how to do the Ubuntu Server installation, while I dedicated the second part to the Domino Server installation.

Before to start I just want to warn you that this is a practical guide without any warranty, it was written with the purpose to help system administrators, so I won't explain technical details neither the theory behind of them.

1. Startup from Ubuntu Server CD

1.1 First you need to download the Ubuntu Server, you can find a iso image at Latest available version is 8.10 but if you install a production server it's better to install the 8.04 LTS which is the latest Long Term Support, remind that Canonical provide 5 year support on LTS version.

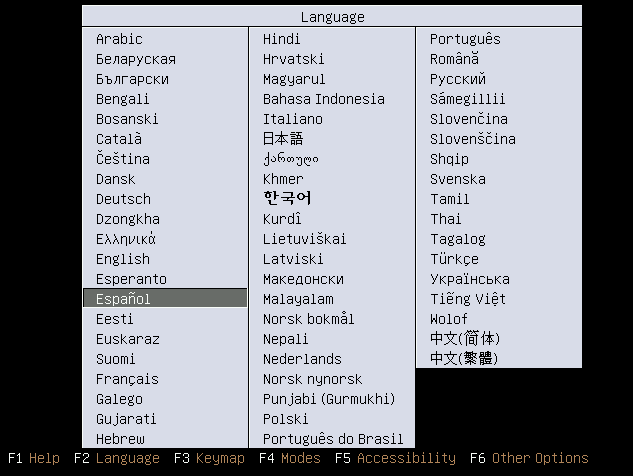

1.2 Once you've got the CD boot your PC from it, you'll get a menu where to choose you language.

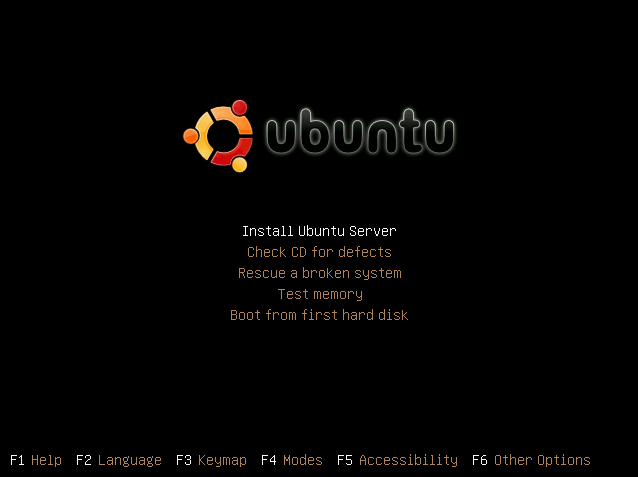

1.3 Now select "Install Ubuntu Server".


2. Start the installation

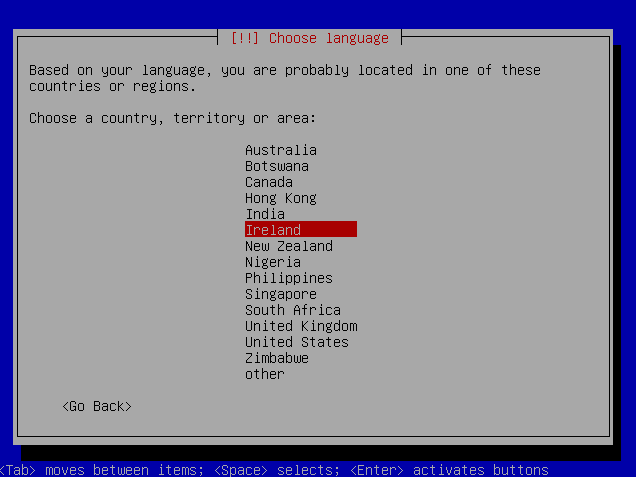

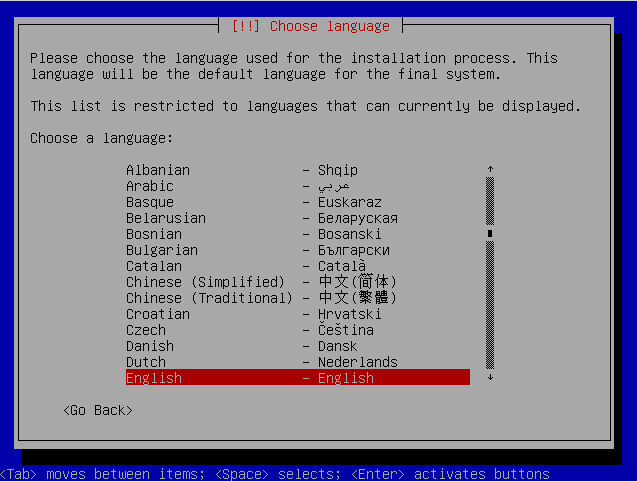

2.1 Choose your language again and your country.

ubuntuserversetup03.png ubuntuserversetup04.png

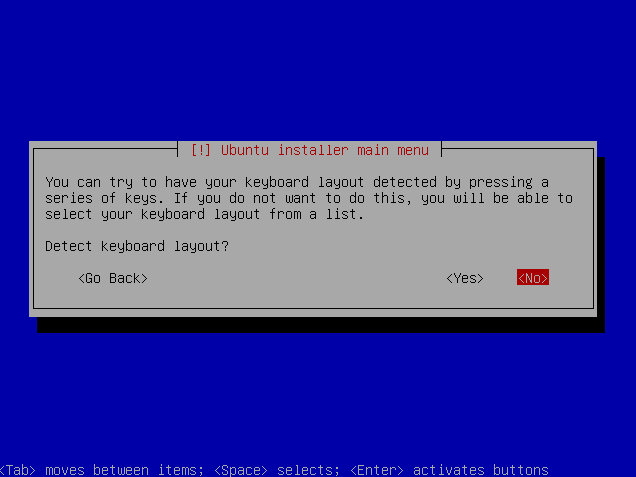

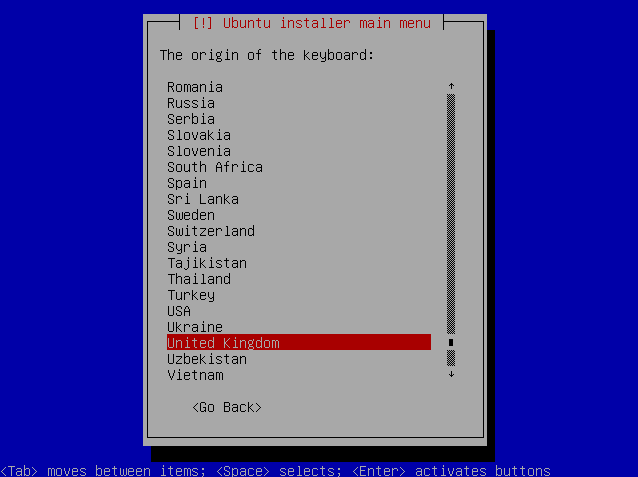

2.2 Choose a keyboard layout.

ubuntuserversetup05.png ubuntuserversetup06.png

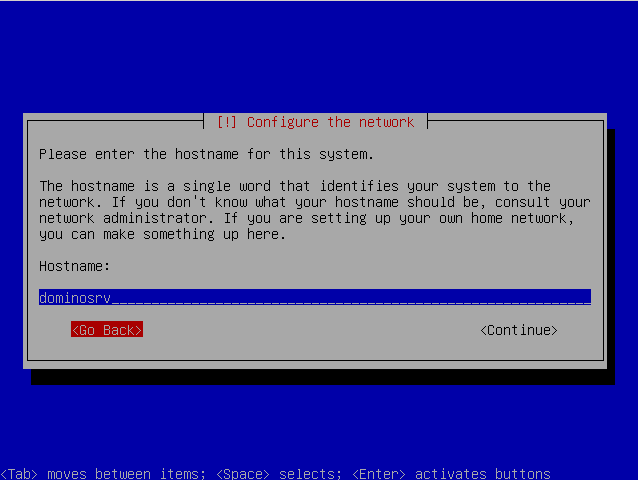

2.3 Installer now checks the installation CD, configures the network using DHCP and ask for server name, in this example I used "dominosrv"


3. Network configuration

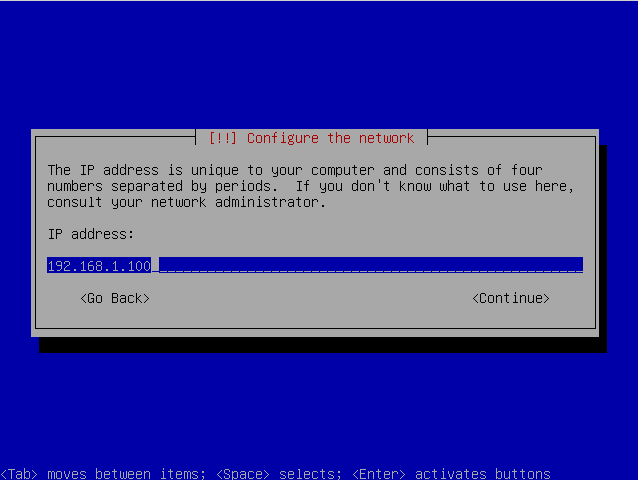

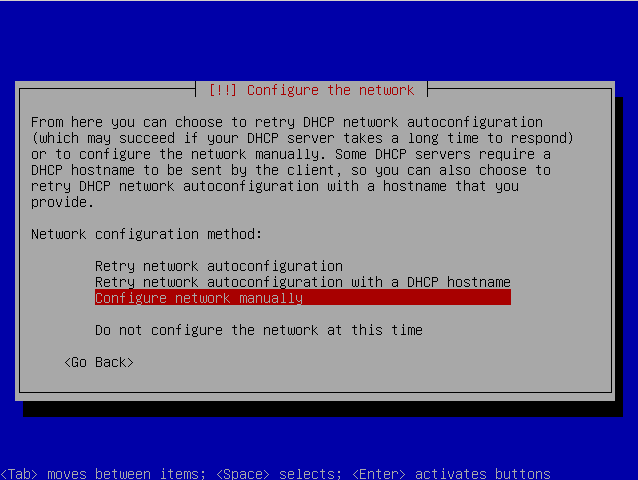

3.1 Network gets its configuration automatically through a DHCP server but, as we are installing a server, this is not what we want, so just go back one step to configure a static IP manually.

ubuntuserversetup08.png ubuntuserversetup09.png

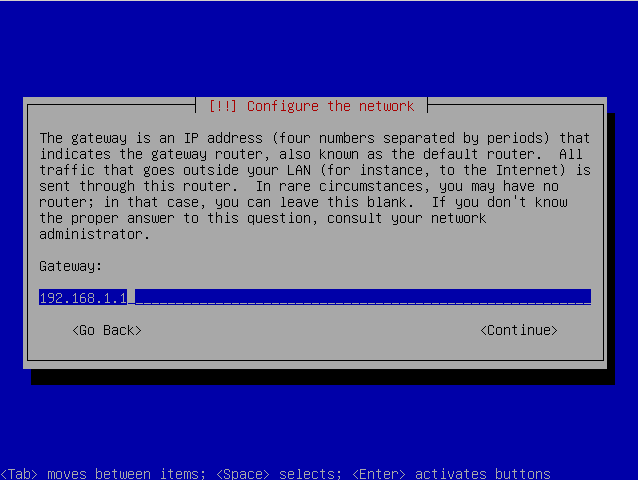

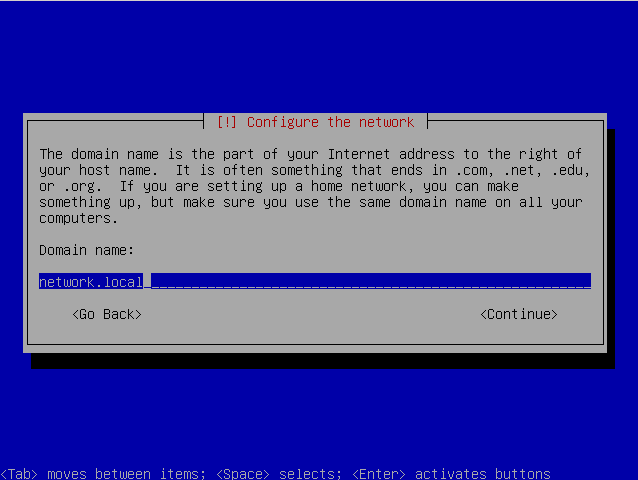

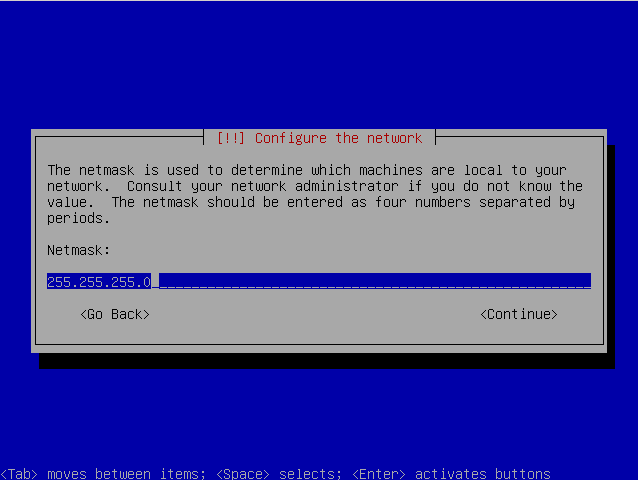

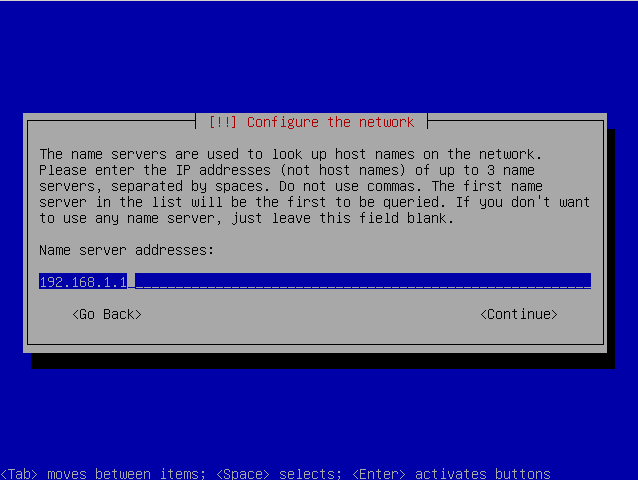

3.1 The screenshots show you the network configuration details

ubuntuserversetup10.png ubuntuserversetup11.png ubuntuserversetup12.png ubuntuserversetup13.png

4. Hard disk partitioning

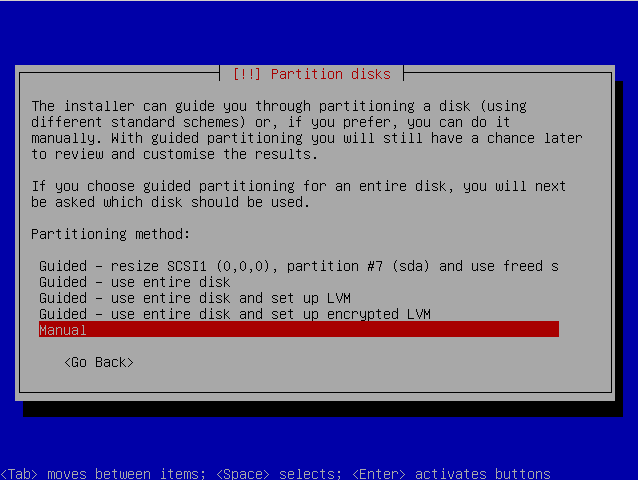

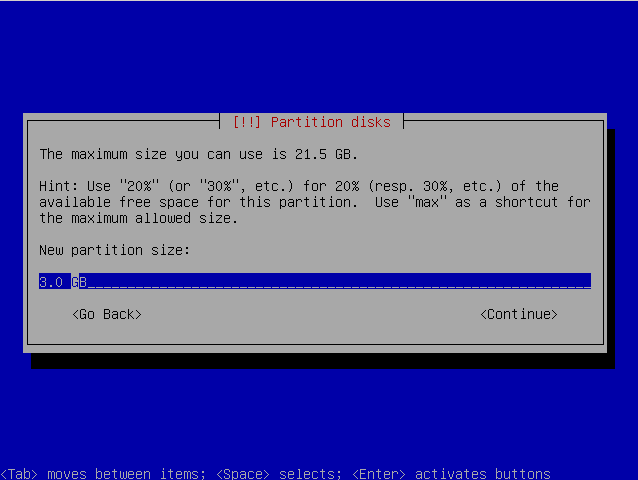

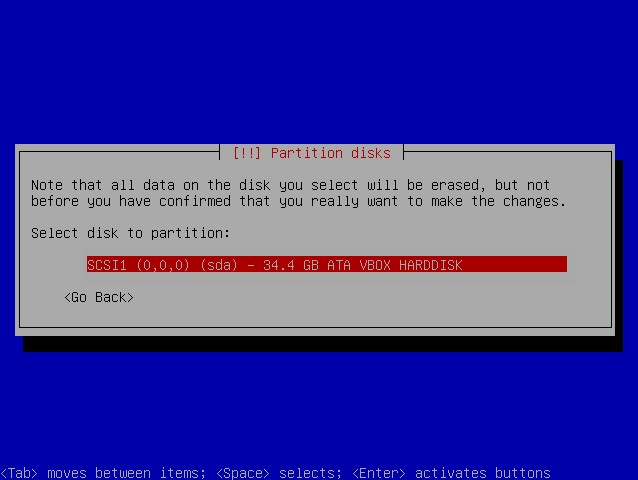

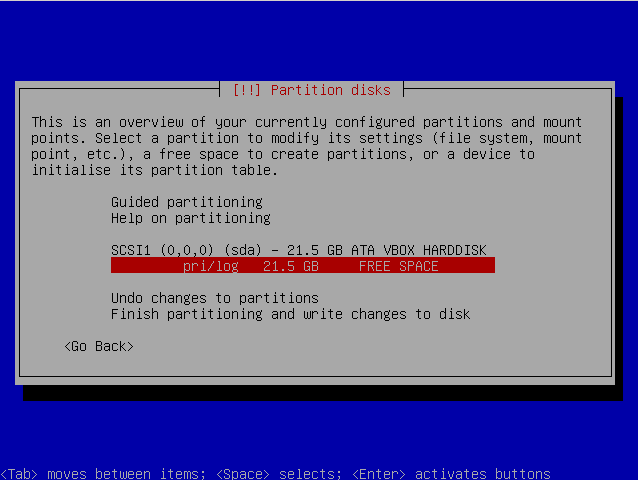

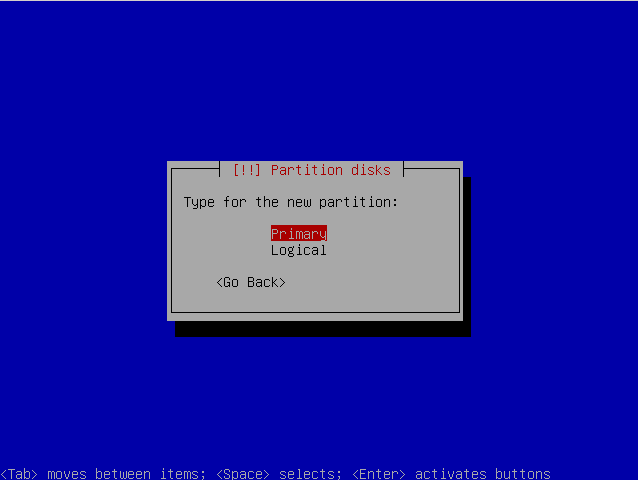

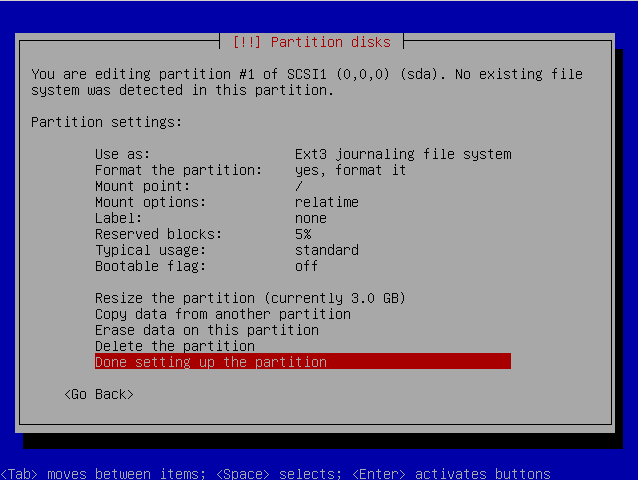

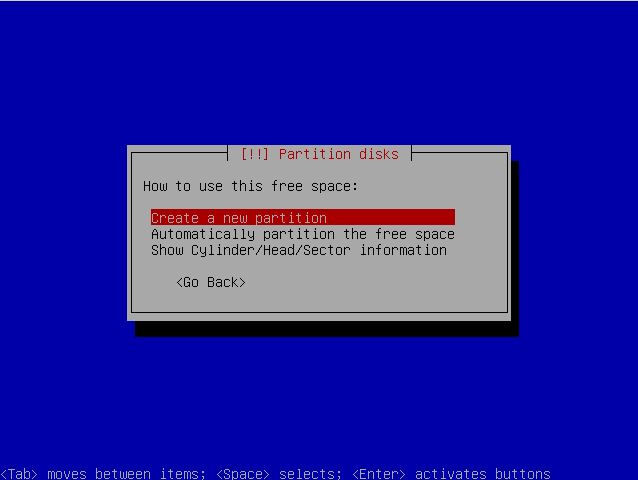

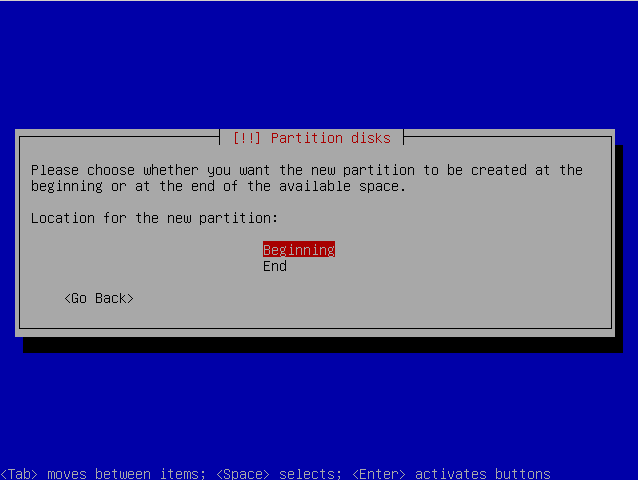

4.1 Now you have to partition your hard disk, you can do a guided partitioning but I prefer doing it manually

ubuntuserversetup14.png ubuntuserversetup15.png ubuntuserversetup16.png ubuntuserversetup17.png

ubuntuserversetup18.png ubuntuserversetup19.png ubuntuserversetup20.png ubuntuserversetup21.png

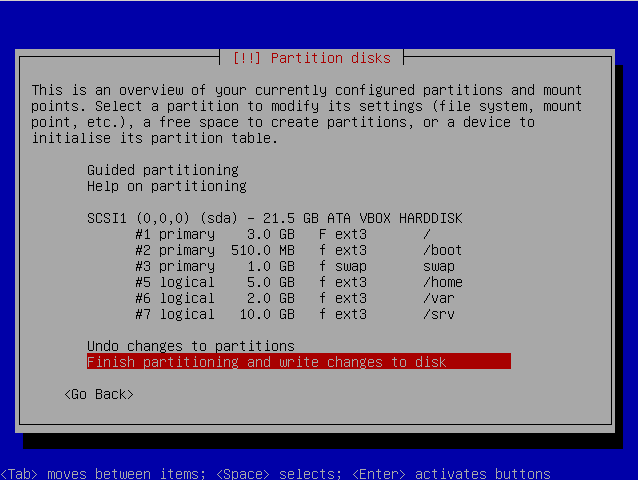

4.2 Here you can see how I partitioned the disk


I just want to point out a couple of thing here, you can notice that I have create two partitions for the user's data:/home and /srv.

Domino Server installation is expecting to install its data directory under /local but it doesn't follow the FHS standard, so I prefer to use /srv directory because, as you can read on the FSH document, it has been designed to contain "site-specific data which is served by this system".

About the /home directory is dedicated to the user's data, in our case we have only a couple of users, sysadmin and notes, so we don't need a big partition.

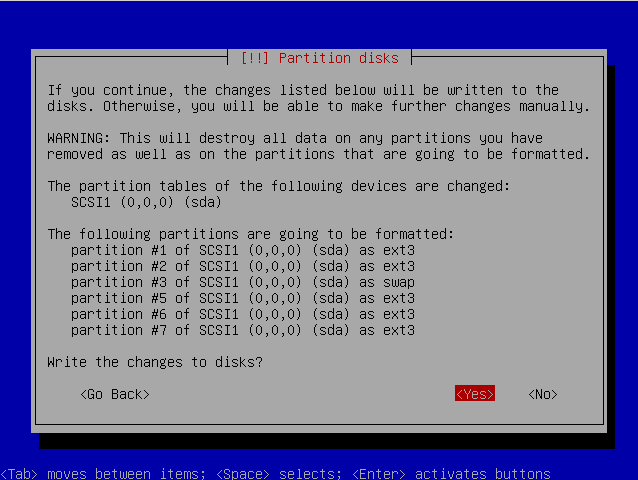

4.3 When you're finished, hit Yes when you're asked: "Write the changes to disks?"


New partitions are being created and formatted.

5. Install the base system

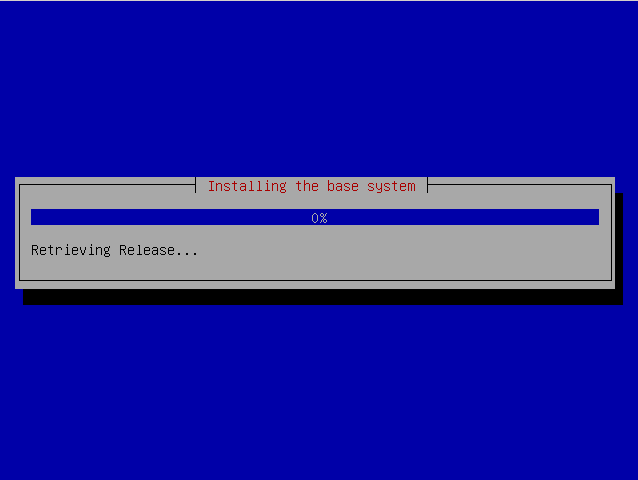

5.1 Now the base system is being installed


6. Set a administrator user and password

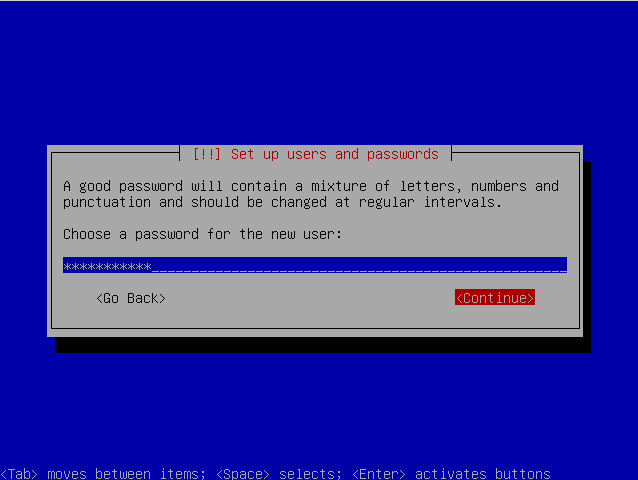

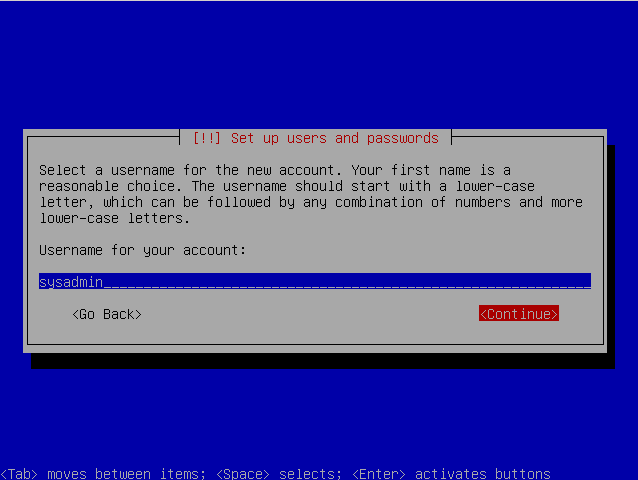

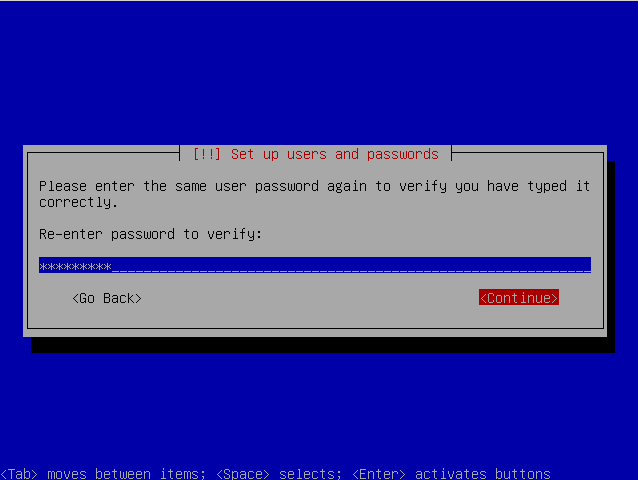

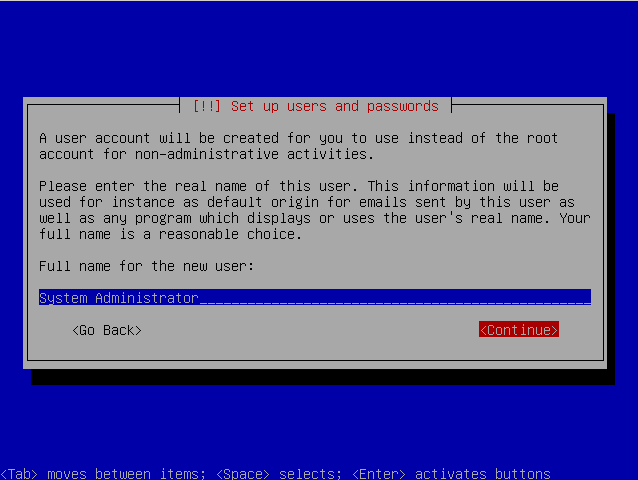

6.1 Create an administrator user and password, don't use the user name "admin" as it is a reserved name, I used "sysadmin". There's no need to create a "notes", we'll see how to do it manually in the second part of this tutorial.


ubuntuserversetup25.png ubuntuserversetup26.png ubuntuserversetup27.png ubuntuserversetup28.png

7. Configure the package manager

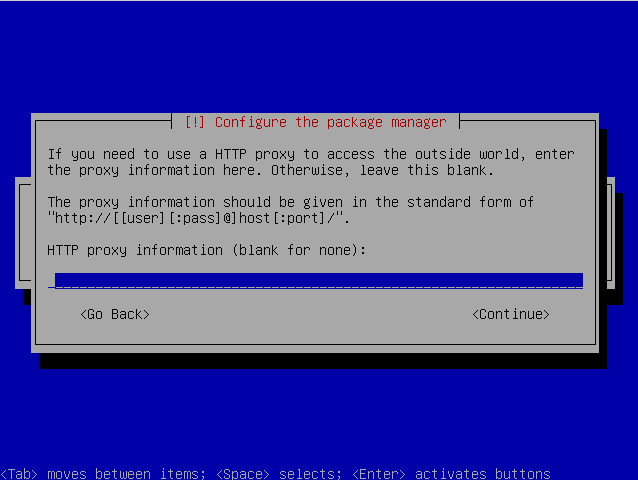

7.1 If you're using a proxy server to connect to the Internet enter the information here or leave it empty.

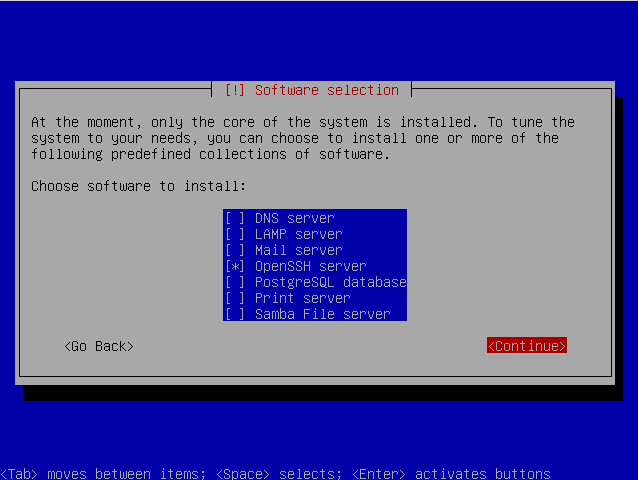

7.2 Now the installer asks which are the packages to install, don't select anything as those services will interfere with Domino Server. The only item I select here is OpenSSH server so that you can administer the system remotely with an SSH client like PuTTY.

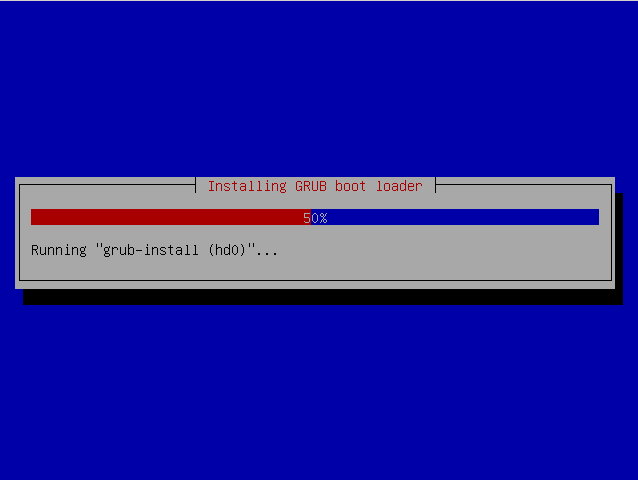

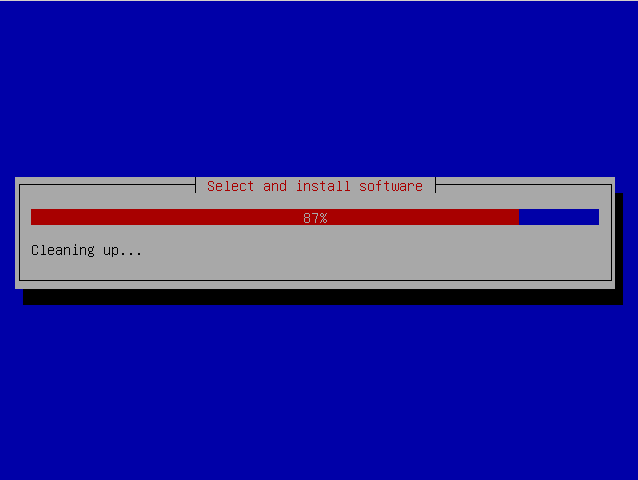

7.2 The installation continues and the GRUB boot loader get installed

ubuntuserversetup31.png ubuntuserversetup32.png

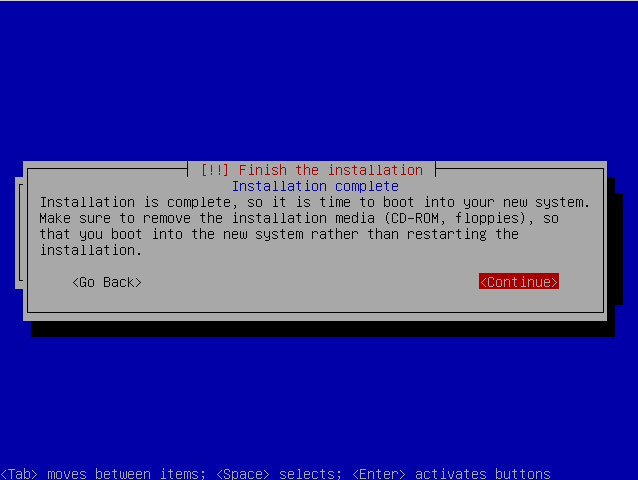

7.3 The Ubuntu system installation is finished. Remove the installation CD from the CD drive and hit Continue to reboot the system:


8. First startup

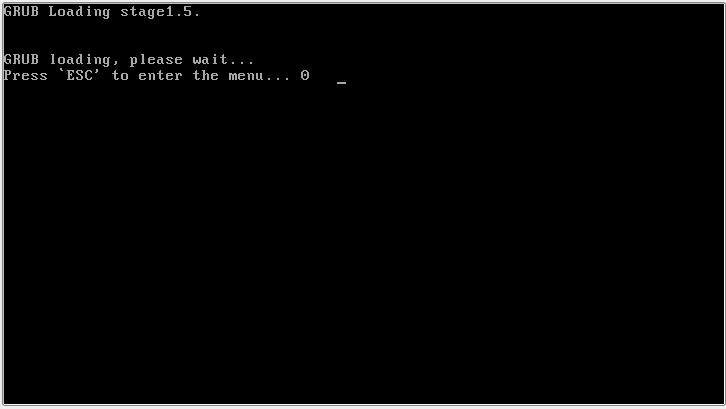

8.1 GRUB is loading the Ubuntu operating system

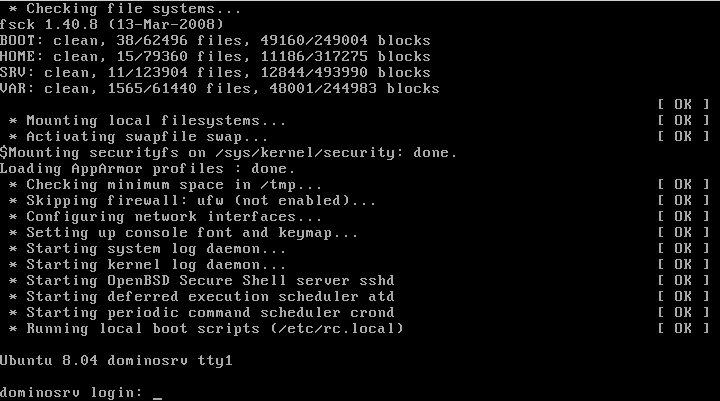

8.2 Now we can login using "sysadmin" user


Note: If you are testing this installation with VirtualBox you'll get some trouble to boot it up, here you can find how to solve it: Starting up Ubuntu Server inside VirtualBox.


That's conclude the first part, now you can start with the Domino Server installation as explained in the second part of this article.
